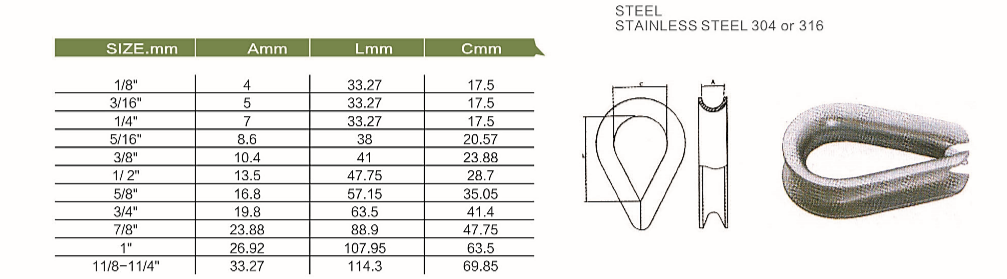

Specifications
| Inch | MM | Amm | Lmm | Cmm |
| 1/16 | 1.5 | |||
| 3/32 | 2 | |||
| 5/32 | 4 | |||
| 1/8 | 3 | 4 | 33.27 | 17.5 |
| 3/16 | 5 | 5 | 33.27 | 17.5 |
| 1/4 | 6 | 7 | 33.27 | 17.5 |
| 5/16 | 8 | 8.6 | 38 | 20.57 |
| 3/8 | 10 | 10.4 | 41 | 23.88 |
| 7/16 | 11 | |||
| 1/2 | 13 | 13.5 | 47.75 | 28.7 |
| 5/8 | 16 | 16.8 | 57.15 | 35.05 |
| 3/4 | 19 | 19.8 | 63.5 | 35.05 |
| 7/8 | 22 | 23.88 | 88.9 | 41.4 |
| 1 | 25 | 26.92 | 107.95 | 63.5 |
| 1-1/8-1-1/4 | 28 | 33.27 | 114.3 | 69.85 |
| 1-1/4-1-3/8 | 32 | |||
| 1-3/8-1-1/2 | 38 | |||
| 1-5/8 | 41 | |||
| 1-3/4 | 44 | |||
| 1-7/8 | 48 | |||
| 2 | 51 | |||
| 2-1/2 | 63 | |||
| 3 | 76 | |||
| 4 | 102 |
Product Features:
Made by Carbon Steel.
Hot Dip galvanized.
The standard choice for light duty applications and loading conditions.
Meet the performance requirements of Federal Specification FF-T-276b Type II.
Longer Service life.
Resist corrosion
